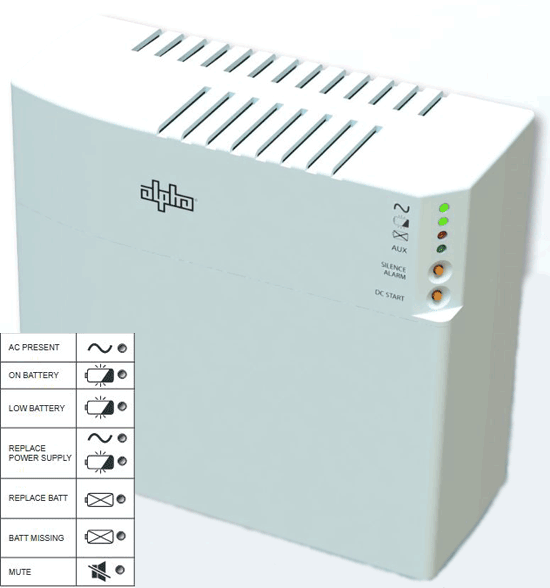

Alpha FlexPoint RFoG 1208-F Power Supply
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| AC PRESENT | SOLID GREEN | Condition Normal; AC powers load, charges battery |
| ON BATTERY | SOLID GREEN | Input fails; battery powers load |
| AUDIBLE ALARM-ON | | 1 beep per second when AC power is lost |
| LOW BATTERY | FLASING GREEN | Alarm is triggered when AC fails and battery is running low |
| AUDIBLE ALARM-LOW | | 1 beep every 15 seconds |
| REPLACE POWER SUPPLY | FLASING GREEN | If both Green LEDs are flashing the power supply needs to be replaced |
| REPLACE BATT | SOLID RED | The unit automatically initiates a battery test ecery 180 days. If the unit fails the test this alarm is triggered |
| AUDIBLE ALARM-REPLACE | | 2 beeps every 15 minutes |
| BATT MISSING | SOLID RED | The alarm is triggered when the batterey is not installed or not connected |
| MUTE | SOLID GREEN | Green LED is lit when Silence Alarm button is pressed and an audible alarm is active |
