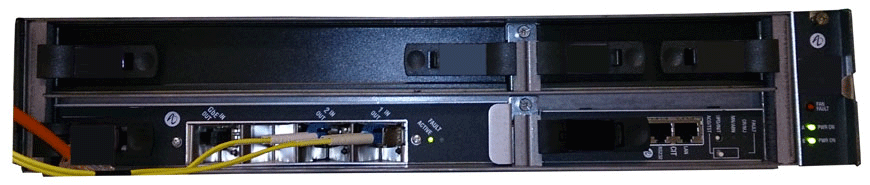

Alcatel-Lucent 1850 TSS-5
Normal Status Lights
Light |
STATUS |
Description & Suggested Action |
| FAN FAULT | Unlit | Fans are running properly | Red (Solid) | 1 of the 3 cooling fans has stopped working |
| A - PWR ON | Green (Solid) | Fan A is working properly | Unlit | Fan A is not functioning |
| B - PWR ON | Green (Solid) | Fan B is working properly | Unlit | Fan B is not functioning |
| SYSCTL VLNC2 Circuit Pack LEDs Compatible Software Operation | ||
| FAULT CR/MJ MN/ABN UPD/INIT ACO/TST |
If compatible software is installed on the replacement
circuit pack, the SYSCTL exibits the following visible cycles: 1. All LEDs light (CR/MJ, FAULT, MN/ABN, ACO/TST) for approximately 5 seconds. 2. CR/MJ & FAULT LEDs extinguish & the MN/ABN & ACO/TST LEDs remain lighted for approximately 15 seconds & then extinguish for 5 seconds. 3. MN/ABN & ACO/TST LEDs simultaniously light again for 8 seconds & then extinguish after 15 seconds. 4. CR/MJ LED flashes eleven times. 5. The LEDs return to the previous state (prior to the replacement) indicating that there is compatible software installed on the replacement circuit pack. |
|
| Factory Default SYSTCTL VLNC2 LEDs | ||
| FAULT CR/MJ MN/ABN UPD/INIT ACO/TST |
If no software is installed on the replacement circuit
pack (factory-fresh), the SYSCTL exibits the following visible cycles: 1. All LEDs light (CR/MJ, FAULT, MN/ABN, ACO/TST) for approximately 5 seconds. 2. CR/MJ & FAULT LEDs extinguish & the MN/ABN & ACO/TST LEDs remain lighted for approximately 15 seconds & then extinguish for 5 seconds. 3. MN/ABN & ACO/TST LEDs simultaniously light again for 8 seconds & then extinguish after 5 seconds. 4. CR/MJ LED flashes eleven times. On flashes 3, 4, 7, 8 & 11, the MN/ABN & ACO/TST LEDs simultaneously light while the CR/MJ LED flashes. On flashes 1, 2, 5, 6, 9 & 10, only the CR/MJ LED flashes. 5. CR/MJ LED remains lighted & the MN/ABN & ACO/TST LEDs simultaneously flash slowly (light for 2 seconds, extinguish at 2 seconds) indicating that the SYSCTL is factory-fresh. |
|
| Incompatible Software LEDs on SYSCTL VLNC2 | ||
| FAULT CR/MJ MN/ABN UPD/INIT ACO/TST |
If incompatible software is installed on the replacement
circuit pack, the SYSCTL exibits the following visible cycles: 1. All LEDs light (CR/MJ, FAULT, MN/ABN, ACO/TST) for 5 seconds. 2. CR/MJ & FAULT LEDs extinguish & the MN/ABN LED lights & MN/ABN & ACO/TST LEDs remain lighted for 15 seconds & then extinguish for 5 seconds. 3. MN/ABN & ACO/TST LEDs simultaniously light again for 8 seconds & then extinguish after 5 seconds. 4. CR/MJ LED lights wile the ACO/TST LED flashes. 5. Find circuit pack with compatible software or boot code & repeat procedure or simultaneously depress the ACO/TST push-button & the UPD/INT recessed push-button on the faceplate of the SYSCTL until the FAULT LED lights. 6. MN/ABN & ACO/TST LEDs simultaniously light again for 15 seconds & then extinguish for 8 seconds. 7. MN/ABN & ACO/TST LEDs simultaneously light again for 10 seconds & then extinguish for 15 seconds. 8. CR/MJ LED remains lighted & the MN/ABN & ACO/TST LEDs simultaneously flash slowly (light for 2 seconds, extinguish at 2 seconds) indicating that the SYSCTL is now ready to accept a download. |
|
| SYSCTL VLNC52 | ||
| FAULT | If a Circuit pack has failed, incoming
electrical/optical signal failure will light the
FAULT LED red and it will flash on
& off in one-second intervals. If the FAULT LED is unlit circuits are functioning properly. |
|
| ACTIVE | If the ACTIVE LED
is flashing means a Firmware Smart Apply may begin. If ACTIVE LED is solid green this means it is operating normally. |
|
