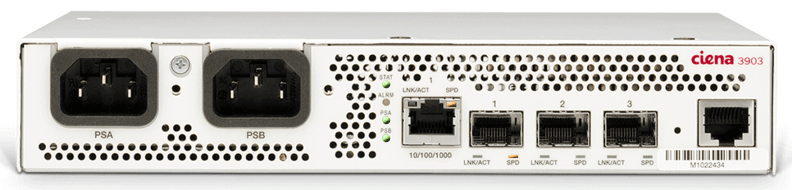

Ciena 3903
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STAT | SOLID GREEN | Indicates Status Normal/System ready |
| FLASHING GREEN | System is initializing & performing self tests |
| UNLIT | System is not operating normally |
| RED | Power on self test failed. Error present |
| ALARM | SOLID AMBER | Will display Solid Amber when fiber is disconnected |
| UNLIT | Normal operation |
| PSA | SOLID GREEN | Normal operation |
| UNLIT | No power |
| PSB | SOLID GREEN | Normal operation |
| UNLIT | No power |
| LNK/ACT (Left LED on 10/100/1000 Port) | SOLID GREEN | Indicates a valid network connection |
| FLASHING GREEN | The port is currently receiving or transmitting Ethernet packets |
| UNLIT | The port is not operational |
| SPD (Right LED on 10/100/1000 Port) | SOLID AMBER | Port speed is 1000 Mbps |
| UNLIT | Port speed is 10/100 Mbps |
