Verizon 4G LTE NETGEAR MBR-1515

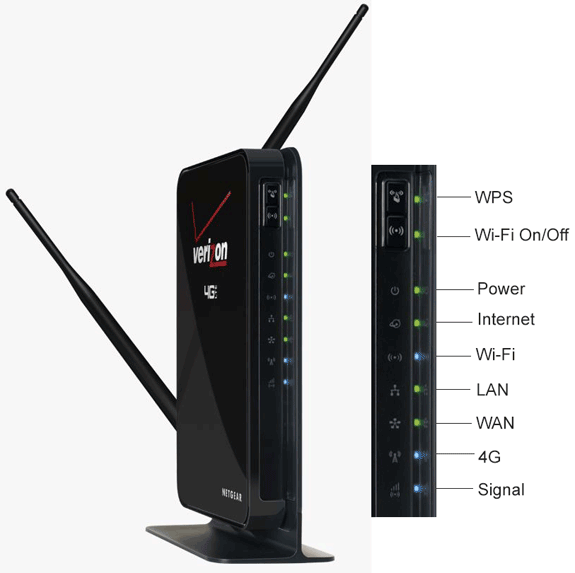

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	Solid Green	Router is turned on and operating normally
	Solid Amber	POST (Power on Self Test) is in progress
	Unlit	Router is powered off
INTERNET	Solid Green	Internet connection established
	Solid Amber	Traffic meter limit has been reached and traffic is blocked. Users can set this feature
	Flashing Green	Data is being transmitted
	Flashing Amber	Traffic meter limit has been reached and traffic is blocked. Users can set this feature
	Flashing Green & Amber	Failover from WAN to Mobile Broadband occurred
	Unlit	No Internet connection detected
Wi-Fi	Flashing Blue	Data is being transferred
	Unlit	Wireless Internet turned off
LAN	Solid Green	LAN Ethernet ports have detected wired links with Computers or other Ethernet devices
	Flashing Green	Data is being transmitted
	Unlit	No link detected on these ports
WAN	Solid Green	WAN Ethernet port has detected an active link
	Flashing Green	Data is being transmitted or received
	Unlit	No link is detected on this Port
4G LTE	Solid Blue	4G LTE or 3G coverage is established for the Router
	Unlit	No 4G LTE or 3G coverage is detected
SIGNAL	Solid Blue	Strong Signal detected
	Solid Green	Good Signal detected
	Solid Amber	Weak Signal detected
	Unlit	No Signal or service failure detected
