Cisco Routers 501 Pix Firewall

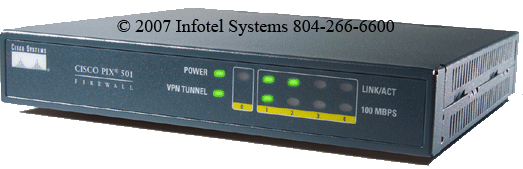

Normal Status Lights
If you need to support for any Cisco device please see: Richweb.
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | The device is powered on. |
Unlit | The device is powered off. | | LINK/ACT | Green (Flashing) | Network activity, such as Internet access is present. |
Green (Solid) | The correct cable is in use and the connected equipment has power and is operational. | Unlit | No link is established. If the LINK/ACT LED does not light up, you might be using the wrong type of cable // Try replacing the yellow, straight-through Ethernet cable with the orange, crossover Ethernet cable. | | VPN TUNNEL | Green (Solid) | One or more IKE/IPSec VPN tunnels are established. |
Unlit | One or more IKE/IPSec VPN tunnels are disabled. If the standard configuration is not modified to support VPN tunnels, the LED does not light up because it is disabled by default. Also, the LED does not light up when PPTP/L2TP tunnels are established. | | 100 MBPS | Green (Solid) | The interface is enabled at 100 Mbps (auto-negotiated). |
Unlit | The interface is enabled at 10 Mbps. |
