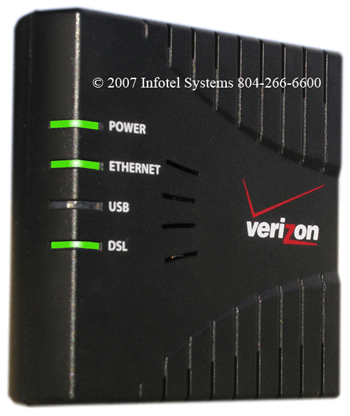

Westell 6100 DSL Modem
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | Power on. |
| Unlit | No power. |
| DSL | Green (Slow Flashing) | Power on and waiting for Carrier Detect Signal. |
| Green (Moderate Flashing) | Power on and attempting synchronization. (2 flashes/second) |
| Green (Blinking) | DSL line is trying to train but for some reason it cannot establish a valid connection. The likely cause of this is that you are too far away from the central office or the line came out of compliance due to rain or other external factor. // Call your Carrier. |
| Green (Solid) | Power on and synchronized with ADSL line card. |
| Red (Solid) | Hardware power-up in progress. (Less than 20 seconds) |
| Red (Flashing) | Modem failed self-diagnostics. |
| Amber (Solid) | Modem in safe boot mode. |
| Unlit | No power. |
| ETHERNET | Green (Solid) | Ethernet link established. |
| Green (Flashing) | Transmit or receive activity. |
| Unlit | No link established. |
| USB | Green (Solid) | USB link established. |
| Green (Flashing) | Transmit or receive activity. |
| Unlit | No USB link established. |
