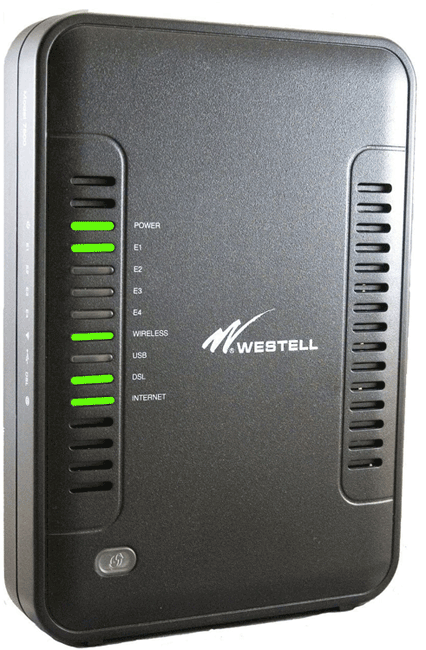

Westell 7500
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | SOLID GREEN | Power is ON |
UNLIT | Power is OFF | SOLID RED | POST (Power On Self Test), Failure (not bootable) or device malfunction | | E1, E2, E3, E4 | SOLID GREEN | Powered device is connected to the associated port (includes devices with wake-on LAN capability where slight voltage is supplied to an Ethernet connection) |
FLASHING GREEN | 10/100 Bast-T LAN activity is present | UNLIT | Power is OFF, no cable or no powered device is connected | | WIRELESS | SOLID GREEN | Link established |
FLASHING GREEN | Wireless LAN activity is present | UNLIT | Power is OFF or no Link | | USB | SOLID GREEN | USB Link established |
FLASHING GREEN | USB LAN activity present | UNLIT | No USB connected | | DSL | SOLID GREEN | Good DSL Link |
FLASHING GREEN | DSL attempting to sync | SOLID AMBER | Modem is in safe boot mode | UNLIT | No Power | | INTERNET | SOLID GREEN | Internet link established with DSL up, the router has a WAN IP address from IPCP or DHCP or a Static IP is configured or PPP negotiation has successfully completed (if used) and no traffic is detected |
FLASHING GREEN | IP connection established and IP traffic is passing through the device | SOLID RED | Device attemted to become IP connected and failed (no DHCP response, no PPP response, PPP authentication failed, no IP address from IPCP) | UNLIT | Router power is OFF, Router is in Bridge Mode or the ADSL connection is not present |
