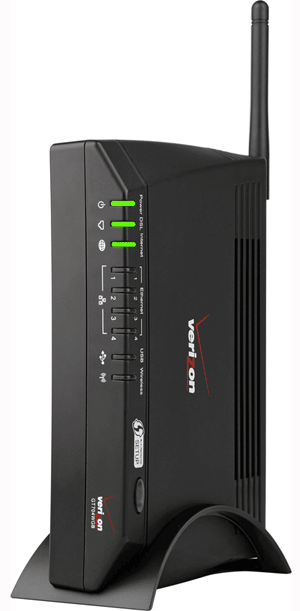

Verizon Actiontec GT704WGB
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Receiving power & fully operational
	FLASHING GREEN	Initializing
	SOLID RED	Gateway has suffered a critical error and Technical Support should be contacted
DSL	SOLID GREEN	Connected to DSL
	UNLIT	No DSL connection
INTERNET	SOLID GREEN	The Gateway is connected to the DSL Provider
	FLASHING GREEN	DSL Modem is training for the DSL service
	UNLIT	Not connected to DSL
ETHERNET	SOLID GREEN	Ethernet port is connected to a device
	FLASHING GREEN	Receive/Send data from device connected to Ethernet port
	UNLIT	No device connected
USB	SOLID GREEN	Device is plugged into USB port
	UNLIT	No device connected
WIRELESS	SOLID GREEN	Connected Wirelessly
	FLASHING GREEN	Send/Receive data
	UNLIT	No Wireless device is connected or the Wireless light has been turned off
WPS	SOLID GREEN	WPS activated
	UNLIT	WPS not activated
