Verizon Actiontec M1424WR
Normal Status Lights
Light |
STATUS |
Description & Suggested Action |
| POWER | The Router is receiving power and is fully operational. | Green (Flashing) | The Router is initializing. | Red (Solid) | The Router has experienced a critical error. // Call Verizon FiOS repair. |
| WAN | Green (Flashing) | Data traffic is passing across the Port. | Unlit | No connection is established between your Router & the Verizon FiOS service. |
| INTERNET | Green (Solid) | The Router is connected to the ISP. | Amber (Solid) | There is a physical connection to the ONT, but authentication has not taken place (i.e., no IP address is present). | Unlit | The Router is connected to the ONT (Optical Network Terminator) but it can't be authenticated. // Call Verizon FiOS repair. |
| LAN ETHERNET 1 - 4 | Green (Flashing) | The LAN Ethernet light illuminate when the Router is connected to a local network. If Flashing, data traffic is passing across the Port(s). | Unlit | No connection or data passing through the Port(s). |
| WIRELESS | Green (Flashing) | The wireless light illuminates the Router's Wireless Access Point when it is turned on. If flashing, data traffic is passing across the wireless connection. |

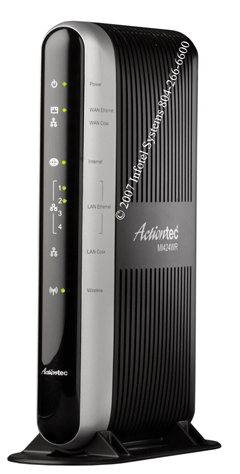

Front | ||
