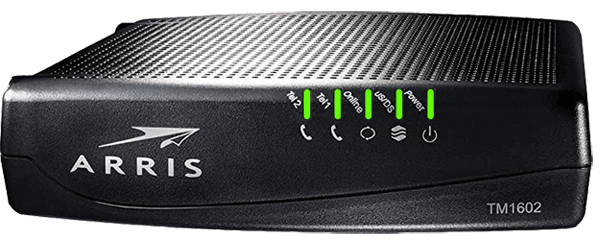

Comcast Arris Touchstone TM1602
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | SOLID GREEN | Power is ON |
| UNLIT | Power is OFF |
| US | SOLID GREEN | Connected to the Internet |
| FLASHING GREEN | Not connected to the Internet |
| DS | SOLID GREEN | Connected to the Internet |
| FLASHING GREEN | Not connected to the Internet |
| ONLINE | SOLID GREEN | Internet available |
| UNLIT | Internet not available |
| TEL1/TEL2 | SOLID GREEN | On-hook |
| FLASHING GREEN | Off-hook |
| UNLIT | Disabled |
| ETHERNET (Rear Panel) | SOLID GREEN | Computer with 1 Gbps port connected |
| SOLID AMBER | Computer with 100/10 Mbps port connected |
| FLASHING GREEN/AMBER | Computer activity |
| UNLIT | Computer not connected |
