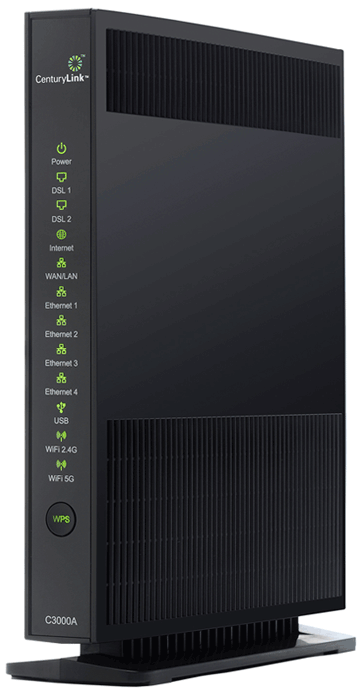

Actiontec C3000A
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Powered ON
	UNLIT	No Power Source
	SOLID RED	Testing its own Hardware. If it's still red after a few minutes, there could be a Hardware or Software failure
	FLASHING GREEN/ORANGE	Software test in progress
DSL	SOLID GREEN	Connected to DSL Network
	UNLIT	No DSL Network detected
	SLOW FLASHING GREEN	Searching for DSL Network
	FAST FLASHING GREEN	DSL Network detected and is connecting
	SOLID RED	Modem cannot detect Network
INTERNET	SOLID GREEN	Connected to the Internet
	FLASHING GREEN	Sending Data back and forth between the Internet and your devices
	UNLIT	"Transpanrent Bridge" mode. If it is unlit for more than 30 seconds after the dSL light is Green you will need to try resetting the modem by pressing the reset button for 10 seconds
	FLASHING GREEN/RED	Completing auto-configuration. If it continues for more than a minute contact your ISP's Technical support
	SOLID ORANGE	Modem needs to be activated
	SOLID RED	Authentication credentials are not accepted by the Network
WAN/LAN	SOLID GREEN	WAN/LAN Port is connected
	FLASHING GREEN	Sending/Receiving data
	UNLIT	Nothing connected in WAN/LAN port
ETHERNET	SOLID GREEN	Device is plugged into an Ethernet port
	UNLIT	No device is connected to the corresponding Ethernet port
Wi-Fi	SOLID GREEN	Wi-Fi enabled
	FLASHING GREEN	Data being transmitted
	LIGHT ORANGE	Temporarily turned off according to wireless schedule feature
	UNLIT	Wi-Fi not enabled
WPS	SOLID GREEN	Enabled and ready to connect
	UNLIT	Disabled
	FLASHING ORANGE	Connecting to a device
	FLASHING RED	Error connecting or a session overlap detected
