Comcast CBR2-T

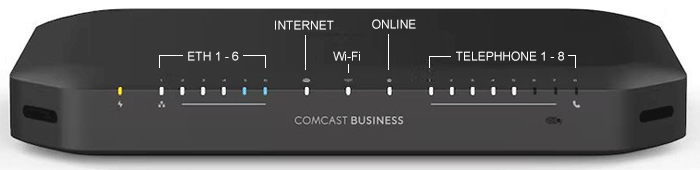

Normal Status Lights

Light	STATUS	Description & Suggested Action
ETHERNET LED	SOLID	Ethernet is enabled with AC power
	UNLIT	Ethernet is not enabled
ETHERNET PORTS 1 - 6	SOLID	Port is connected
	UNLIT	Port is not connected
	FLASHING	Data is being transferred
INTERNET LED	SOLID	Internet service is active
	UNLIT	There is no Internet service
Wi-Fi	FLASHING	Data (2.4GHZ or 5GHZ) is active over the wireless connection
	UNLIT	Wi-Fi Access point is not enabled
ONLINE	SOLID	Connected to the Service Providers Network. Even when Internet is not active, LED is on. Data traffic can be used
	FLASHING	Trying to acquire Upstream/Downstream frequencies
TELEPHONE LINES 1-8	SOLID	Telephone Line is registered successfully with the Call Manager
	FLASHING	Telephone Line has either gone off-hook or is on an active call
	UNLIT	Telephone Line is not registered with the Call Manager
TELEPHONE LINE ICON	SOLID	MTA Voice interface is operational
	UNLIT	MTA Voice interface is not operational
WPS ICON	FLASHING	WPS process intialized and lasts for 2 minutes
	UNLIT	No WPS activity
BATTERY	UNLIT	Devices is off or AC power is on or Batter is not installed
	SOLID	On Battery power
	FLASHING	Battery needs replacement
RESET BUTTON	tiny hole under tel 8 LED	Insert paper clip for 5 seconds until lights transistion.
