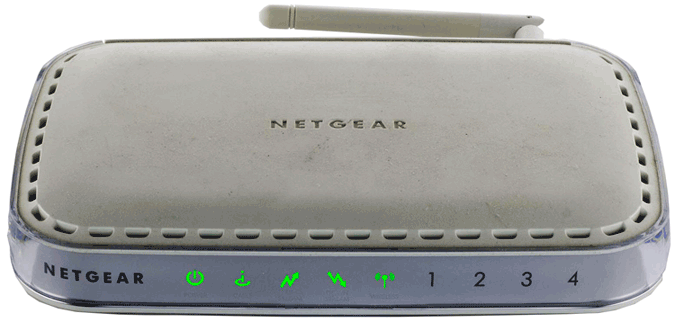

Netgear CG814WG
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Power is supplied to the Gateway
	UNLIT	Power is off
CABLE LINK	SOLID GREEN	Configuration of the cable interface by your Cable Service Provider is complete
	UNLIT	Configuration of the cable interface is still in progress
UPSTREAM TRAFFIC	FLASHING GREEN	Data is being transmitted to the cable interface
	UNLIT	Cable interface is idle
DOWNSTREAM TRAFFIC	FLASHING GREEN	Data is being received from the cable interface
	UNLIT	Cable interface is idle
WIRELESS	SOLID GREEN	The Wireless Access Point is operating normally
	UNLIT	Data is being transmitted or received on the wireless interface
LAN (Local Area Network)	SOLID GREEN	The Port has detected a link with a 100 Mbps device
	FLASHING GREEN	Data is being transmitted or received at 100 Mbps
	SOLID AMBER	The Local Port has detected a link with a 10 Mbps device
	FLASHING YELLOW	Data is being transmitted or received at 10 Mbps
	UNLIT	No link is detected on this Port
