Arris CM8200A

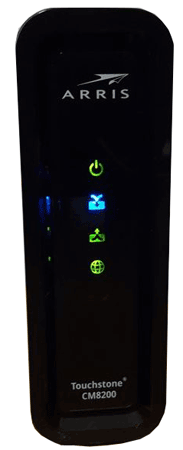

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Power is properly connected
RECEIVE	SOLID GREEN	Downstream channel is connected in DOCSIS 3.0 mode
	SOLID BLUE	High-Speed Internet connection with downstream channels in DOCSIS 3.1 mode
	FLASHING	Scanning for a downstream (Receive) channel Internet connection
SEND	SOLID GREEN	Upstream channel is connected in DOCSIS 3.0 mode
	SOLID BLUE	High-Speed Internet connection with Upstream channels in DOCSIS 3.1 mode
	FLASHING	Scanning for an Upstream (Send) channel Internet connection
ONLINE	SOLID GREEN	Cable modem is connected to the Internet
ETHERNET PORTS (Back Panel)	GREEN	LED indicates a GigE data connection is made
	AMBER	LED indicates a 10/100 Mbps data connection is made
