Comcast Cisco DPC3010

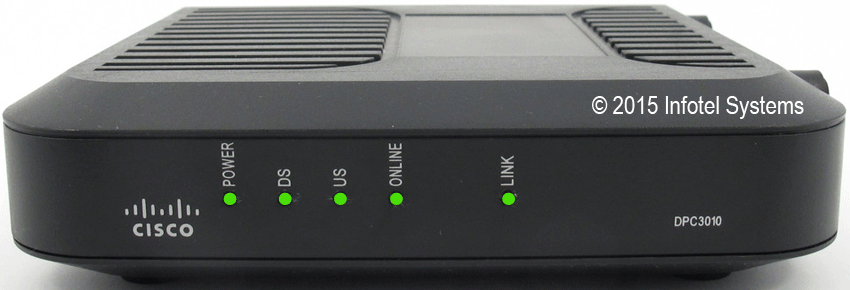

Normal Status Lights

Light
STATUS
Description & Suggested Action
POWERGreen (Solid)Normal Operation
UnlitNo power
DSGreen (Solid)Normal Operation
Green (Flashing)Flashes on initial power up & when performing a downstream scan
Green (Flashing)Flashes 2 times per second when Network access is denied
USGreen (Solid)Normal Operation
Green (Flashing)Flashes on initial power up & when ranging
Green (Flashing)Flashes 2 times per second when Network access is denied
ONLINEGreen (Solid)Normal Operation
Green (Flashing)Flashes on initial power up & during registration
Green (Flashing)Flashes 2 times per second when Network access is denied
LINKGreen (Solid)When a single device is connected to either Ethernet or USB port and no data is being sent to or from the modem
Green (Flashing)When only one Ethernet or USB device is connected & data is being transferred between the consumer premise equipment (CPE) & the cable modem
UnlitWhen no devices are connected to either the Ethernet or USB ports

Notes:

- When both Ethernet & USB devices are connected to the modem at the same time & data is being transferred through only on of the devices (Ethernet or USB), the LINK LED status indicator illuminates continuously.

- Whenever data is being sent through both data ports (Ethernet & USB) simultaneously, the indicator blinks as described above.
