Ubiquiti Cloud Gateway Fiber
Normal Status Lights

Light	STATUS	Description & Suggested Action

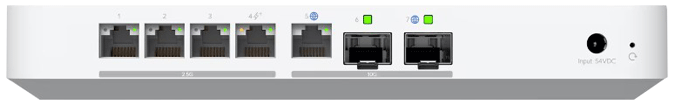

INFORMATION DISPLAY	FRONT	GRAPHIC ON FRONT PANEL

Light	STATUS	Description & Suggested Action
ETHERNET PORT	Unlit	No Link established
	Amber	Link established at 10/100 Mbps
	Flashing Amber	Link activity at 10/100 Mbps
	Green	Link established at 1 Gbps
	Flashing Green	Link activity at 1 Gbps
SFP/FIBER PORT	Unlit	No Link established
	Green	Link established at 1 Gbps
	Flashing Green	Network activity on the 1 Gbps connection
