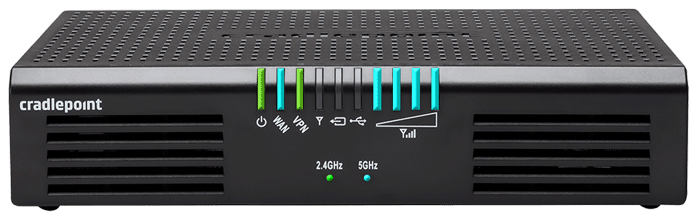

Comcast Cradlepoint AER1600 Series Micro Branch 4G Router
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	UNLIT	Not receiving power. Check the power switch and the power source connection
	SOLID GREEN	Powered on
	SOLID AMBER	Open the administration pages and check the router status. The LED will show AMBER until the default Administrator and Wi-Fi passwords are changed. Default passwords must be changed to secure the Router
WAN	SOLID BLUE	Connected to an Ethernet WAN interface
VPN	SOLID GREEN	Active VPN tunnel
EMBEDDED MODEM (Indicates the status of embedded Modem - Only on AER1600LPE/AER1650LPE)	SOLID GREEN	Modem has establised an active connection
	FLASHING GREEN	Modem is connecting
	FLASHING AMBER	Data connection error. No modem connection possible
	FLASHING RED	Modem is in the process of resetting
REMOVABLE MC400 MODEM	UNLIT	No Modem detected
	SOLID BLUE	MC400 has an active connection
EXTERNAL USB MODEM	UNLIT	No Modem detected
	SOLID BLUE	USB Modem has an active connection
SIGNAL STRENGTH	SOLID BLUE	4 solid bars = strongest signal
	FLASHING BLUE	1 Flashing bar = Weakest signal (A blinking bar indicates half of a bar)
Wi-Fi BROADCAST (Indicates activity on Wi-Fi broadcast for buth 2.4GHz & 5GHz bands - AER1600 only)	GREEN	2.4GHz Wi-Fi is on and operating normally
	BLUE	5GHz Wi-Fi is on and operating normally
