Sonitrol Cradlepoint IBR900

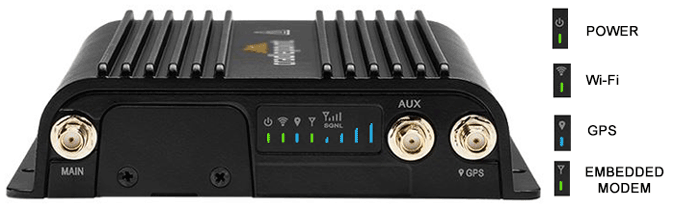

Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Unlit | No Power |
Solid Amber | Can indicate Bootup sequence of the Endpoint, Dashboard alerts that must be addressed (attending to these alerts may cause the LED to turn solid red), Status will remain Amber until the default password is changed or the device license needs to be renewed. | Solid Green | Powered On | Flashing Green | Rapid cycling of device power. Check to ensure any power supplied to device, particularly by vehicle battery is fully charged and supplying the correct voltage | Solid Red | Indicates the WAN profile priority in the Connection Manager needs adjustment. If the Ethernet WAN is disconnected and the Modem with the active SIM is connected, then the Power LED is Red until the Modem with the active SIM is changed to have a higher priority in Connection Manager. Once that is changed the Power LED with turn Green | | Wi-Fi | Unlit | No Wi-Fi Connected |
Solid Green | Wi-Fi is on and functioning normally | Solid Yellow | Attention Log into NCM to troubleshoot. Note: Upon installation the light will be Yellow until the device is registered in NetCloud Manager | | GPS | Unlit | Off/No Lock |
Solid Blue | GPS On/Locked | Flashing Blue | Obtaining Lock | | EMBEDDED MODEM | Unlit | Modem not connected |
Solid Green | Modem has established an active connection | Flashing Green | Modem is connecting | Solid Yellow | Modem is not active | Flashing Yellow | Data connection error. No Modem connection possible | Flashing Red | Modem is in the process of resetting. Flashing Red with Signal Strength LED = SIM dooe is not installed, Modem is off | | SGNL | 4 Solid Blue Bars | Strongest Signal |
1 Flashing Blue Bar | Weakest Signal |
