Comcast D-Link DCM-301

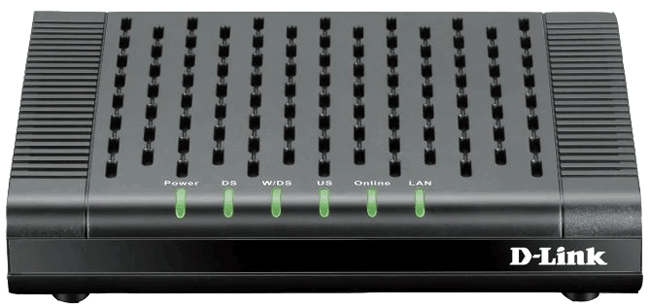

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Powered ON
	UNLIT	No Power
DS	SOLID GREEN	Modem has established a Downstream Signal
	FLASHING GREEN	Modem is establishing a connection from the Internet to the Computer
W/DS	SOLID GREEN	Indicates a bonded (mulit-channel) connection has been successfully made
US	SOLID GREEN	Modem has established an Upstream Signal
	FLASHING GREEN	Modem is trying to connect to service - Looking for an Upstream Signal
	UNLIT	Modem establishing a connection from the Computer to the Internet
ONLINE	SOLID GREEN	Modem is ONLINE
	UNLIT	No Connection
LAN	SOLID GREEN	Indicates connectivity to your Router or Computer
	FLASHING GREEN	A Device is connected to the Ethernet port and data is being sent to or from the Modem
	UNLIT	No Connection

For more information or to have your device listed please contact Infotel Systems
