Spectrum D31 MDU Modem

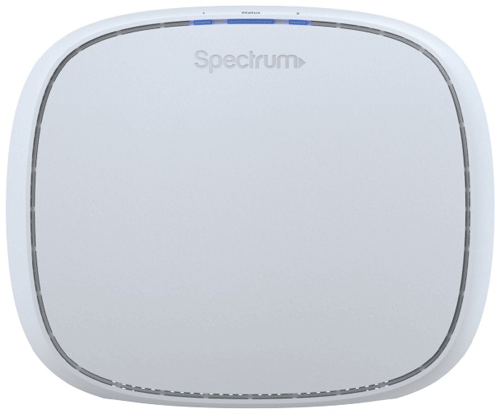

Normal Status Lights

Light	STATUS	Description & Suggested Action
STATUS	Flashing Blue	Powering up
	Pulsing Blue	Finding RF Signal connection
	Solid Blue	Normal operation
	Solid White	Operating in D3.0 Mode
VOICE 1-2	Unlit	Not provisioned or unable to establish Phone Network connection
	Solid Blue	Voice service provisioned
	Pulsing Blue	Phone off-hook on AC power
FIRMWARE UPGRADE	Pulsing Blue/Red	Status LED will pulse blue and red

Light	STATUS	Description & Suggested Action

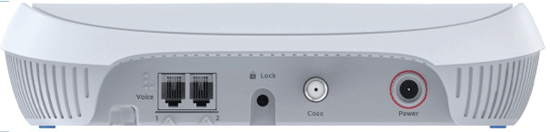

PoE Out WAN Port		Located on the backside of the device
Phone 1-2		Located on the bottom of the device
Coax		Located on the bottom of the device
Power		Located on the bottom of the device

For more information or to have your device listed please contact Infotel Systems
