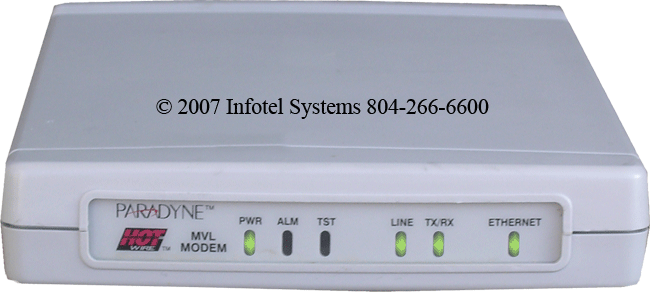

Paradyne DSL Modem 6310 A2 200
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| PWR | Green (Solid) | MLV Modem has power. |
Unlit | No power. | | ALM | Red (Solid) | An alarm condtion exists. The power-on self-test may have failed. // Unplug the unit and reapply power. // If the alarm LED is still on, contact the Service Provider. |
Unlit | No active alarms. | | TST | Yellow (Solid) | The TST LED is on during power-on, self-test and during a test initiated by the Service Provider. |
Unlit | No active tests. | | LINE | Green (Solid) | The MLV link is active and ready to transmit and receive data. |
Unlit | No DSL signal on POTS line or POTS line is unplugged. // Check for dial tone on the line using a plain "home style" phone. // Call your Carrier. | | TX/RX | Green (Flashing) | Data transmission is in progress on the MLV line. |
Unlit | The Modem is not transmitting or receiving data. | | ETHERNET | Green (Solid) | The Ethernet connection to the Ethernet hub or PC is active. |
Unlit | Ethernet cable to device unplugged or device not powered. // Check your Firewall/Router. // Advise your Vendor. |
