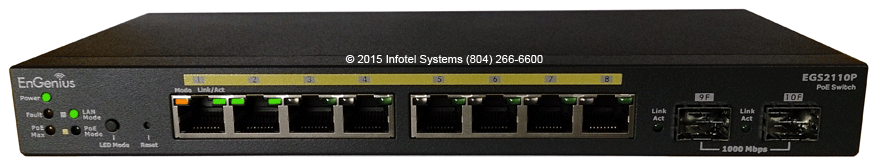

EnGenius EGS2110P
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | Power on |
Unlit | No power | | FAULT | Unlit | Normal behavior |
Amber (Solid) | Error | | POE MAX | Amber (Solid) | The PoE device's output power has exceeded total PoE limit. No additional devices can be powered on via PoE |
Unlit | Additional PoE device may still be added | | LAN MODE | Green (Solid) | LAN mode is activated |
Unlit | LAN mode is not activated | | POE MODE | Green (Solid) | PoE mode is activated |
Unlit | PoE mode is not activated | | LED MODE SELECTOR | N/A | Press to change between LAN and PoE mode |
| RESET | N/A | Press to restart the device to factory default settings |
| LAN MODE (Per Copper Port; Left LED indicator.) | Green (Solid) | A valid 1000 Mbps link is established on the Port |
Amber (Solid) | A valid 10/100 Mbps link is established on the Port | Unlit | No link is established on the Port | | POE MODE (Per Copper Port) | Green (Solid) | Power is being supplied from the PoE switch |
Amber (Solid) | Error | Unlit | No power | | LINK/ACT (Per Copper Port; Right LED indicator.) | Green (Solid) | A valid link is established on the Port |
Green (Flashing) | Packet transmission on the Port | Unlit | No link is established on the Port |
Light
|
STATUS
|
Description & Suggested Action
|

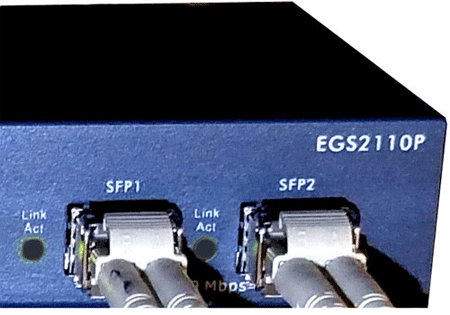

| SFP PORTS | N/A | Small form factor pluggable Ports |
