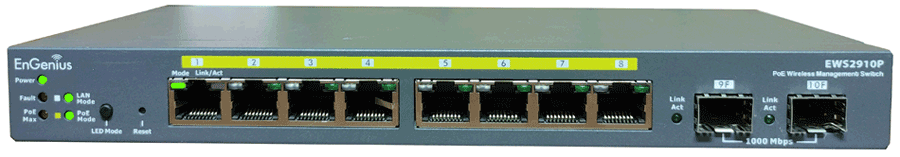

Engenius EWS2910P
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | SOLID GREEN | |
Unlit | | | FAULT | Unlit | Normal behavior |
Amber (Solid) | Error | | POE MAX | Amber (Solid) | The PoE device's output power has exceeded total PoE limit. No additional devices can be powered on via PoE |
Unlit | Additional PoE device may still be added | | LAN MODE | Green (Solid) | Speed 1000Mbps |
Amber (Solid) | Speed 100Mbps | Unlit | Speed 10Mbps | | POE MODE | Green (Solid) | Power feeding |
Amber (Solid) | Error condition | Unlit | No Power feeding | | LED MODE SELECTOR | N/A | Press to change between LAN and PoE mode |
| RESET | N/A | Press to restart the device to factory default settings |
| LINK/ACT | Solid Green | Link |
Flashing | Transmit or receive on this port | Unlit | No Link | | SPF PORT LINK/ACT | Solid Green | Link |
Flashing | Transmit or receive on this port | Unlit | No Link |
