Multitech FF130 - FF230

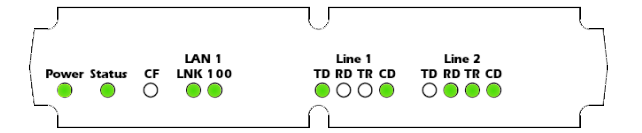

Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | Unit is powered on. |
| STATUS | Green (Blinking) | A few moments after power is on, the Status LED will be blinking green to show normal, working state. |
| CF | Compact Flash | When the compact flash drive is accessed, this LED will light. |
| LNK | Green (Flashing) | Lit when a physical link has been established with the Ethernet network. |
| 100 | Green (Solid) | When lit, Ethernet rate is 100 Mbps; When unlit rate is 10 Mbps. |
| TD | Green (Flashing) | The TD LED flashes when the Modem is transmitting data to another Modem. |
| RD | Green (Flashing) | The RD LED flashes when the Modem is receiving data from another Modem. |
| TR | Green (Flashing) | Indicates that server is in communication with the Modem. |
| CD | Green (Solid) | Carrier of remote Modem is detected. |
