Verizon FiOS Alcatel-Lucent I-211M-L GIG ONT

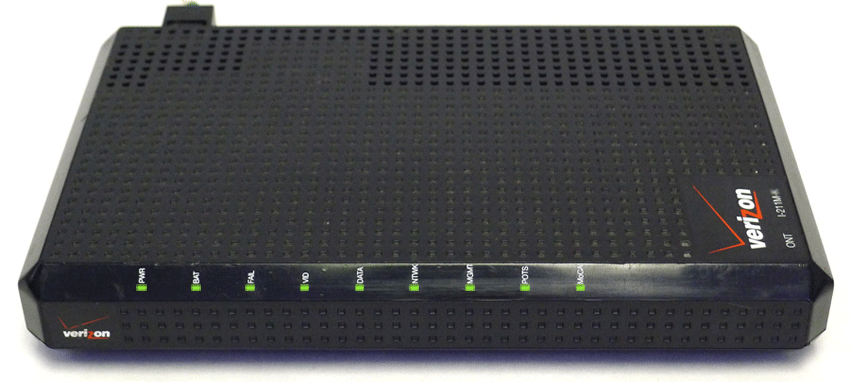

Normal Status Lights

Light	STATUS	Description & Suggested Action
PWR	UNLIT	Not powered
	SOLID GREEN	power is available
BTRY	UNLIT	Battery low or battery missing
	SOLID GREEN	Battery good, charged and there is no battery alarm
FAIL	UNLIT	Equipment 100% operational
	SOLID RED	Equipment failure or not ranged, synchronized
VID	UNLIT	Video signal above acceptable level or not provisioned
	SOLID RED	Video signal below acceptable level
DATA	UNLIT	No link or data not provisioned
	SOLID GREEN	Link active (Ethernet or MoCA)
NTWK	UNLIT	1490 nm data path is unavailable
	SOLID GREEN	1490 nm data path is available
MGMT	UNLIT	No communication between OLT/ONT
	SOLID GREEN	Full communication between OLT/ONT
	FLASHING GREEN	ONT disabled
POTS	UNLIT	All customers on-hook
	SOLID GREEN	Any customer is off-hook
	FLASHING GREEN	In SLID entry mode
MOCA	UNLIT	Not provisioned or no link
	SOLID GREEN	Provisioned and registered
	FLASHING GREEN	Data activity ( 1 second on, 1 second off)
Notes (1) The VID LED is only functional for RF vidoe-equipped ONTs (2) The MoCA LED is only functional for MoCA equipped ONTs (3) GIG residential customers have both the coax for video and ethernet for data enabled by default.

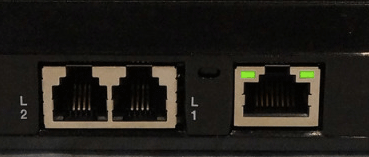

Light	STATUS	Description & Suggested Action
ACTIVITY	UNLIT	No TX/RX activity
	FLASHING GREEN	TX/RX activity
DUPLEX	UNLIT	Half duplex
	SOLID GREEN	Full duplex
	FLASHING GREEN	Collision detected for half duplex
LINK	UNLIT	No link
	SOLID GREEN	Link active
MODE	UNLIT	10 Mbps operation
	YELLOW	100 Mbps operation
