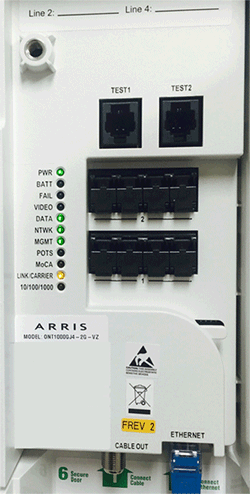

Verizon FiOS ONT1000GJ4
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| PWR | Green (Solid) | Normal |
| Green (Flashing) | No AC power; ONT running on battery |
| Unlit | No power |
| BATT | Green | Normal |
| Unlit | Battery is missing, bad or low |
| FAIL | Unlit | Normal |
| Red (Flashing) | ONT is ranging. / Allow ONT to range > 120 seconds |
| Red (Solid) | Hardware or Software fault |
| VIDEO | Unlit | Normal |
| Red (Flashing) | 1550 NM > .5DB above optical limit |
| Red (Solid) | 1550 NM signal weak |
| DATA | Green (Solid) | Ethernet or Return Path data detected |
| Unlit | No data is being passed |
| NTWK | Green (Solid) | Normal |
| Unlit | No Optical link established (1490 NM) |
| MGMT | Green (Solid) | Normal |
| Green (Flashing) | ONT is booting up |
| Unlit | ONT has lost communication |
| POTS | Unlit | Normal |
| Yellow (Solid) | One or more lines off hook |
| MoCA | Green (Solid) | Normal |
| Unlit | No MoCA RF link |
| LINK/CARRIER | Yellow (Solid) | Ethernet Link up |
| Yellow (Flashing) | Ethernet Link up and RX/TX activity |
| Unlit | No Ethernet Link |
| 10/100/1000 | Green (Solid) | 100 Mbps |
| Green (Flashing) | 1000 Mbps |
| Unlit | 10 Mbps |
