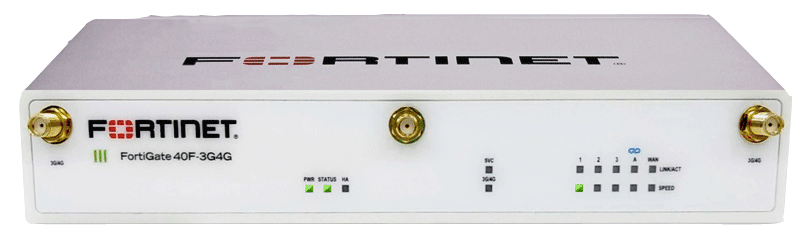

Fortinet FortiGate 40F-3G4G
Normal Status Lights

Light
STATUS
Description & Suggested Action
PWRSOLID GREENPower is on
UNLITPower is off
STATUSSOLID GREENNormal
FLASHING GREENBooting up
HASOLID GREENOperating in HA cluster
SOLID AMBERHA failover
UNLITNot in an HA cluster
SVCSOLID GREENSVC is on
FLASHIGN GREENSVC activity
UNLITSVC is off
3G/4GSOLID GREEN3G/4G is on
FLASHING GREEN3G/4G activity
UNLIT3G/4G is off
PORT LINK/ACTSOLID GREENConnected
FLASHING GREENTransmitting data
UNLITNo link established
PORT SPEEDGREENConnected at 1Gbps
AMBERConnected at 100Mbps
UNLITNot connected or 10Mbps
