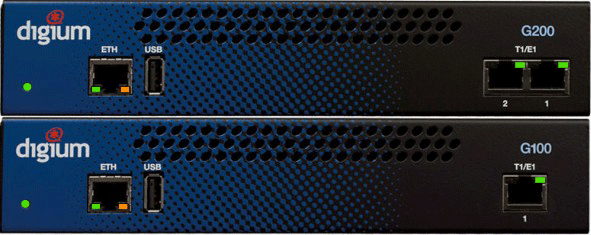

Digium G100-G200
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
DEVICE | Green (Solid) | Hardware & Software are fully initialized & running. |
Red (Flashing) | A Software package is being evaluated for validity. | Red (Solid) | Hardware is initializing. | ETH - LEFT | Green (Solid) | On the left side indicates an Active Link. |
ETH - RIGHT | Amber (Flashing) | On the right side indicates Network Activity. |
T1/E1 - LEFT | Blue (Solid) | On the left side when lit indicates T1/E1 software driver is initialized, but configuration is invalid. // Load new config. |
T1/E1 - RIGHT | Green (Solid) | On the right side indicates an Appliance is in-sync with the far end. |
Green (Singular Blink) | On the right side indicates a line has been placed into loopback mode. | Yellow (Solid) | On the right side indicates an Appliance is synchronizing or is receiving a yellow alarm from the far end. | Unlit | T1/E1 Software driver not initialized. |
