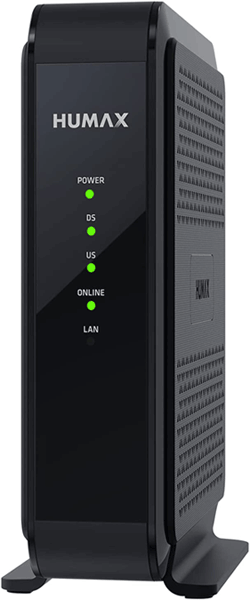

HUMAX HGD310
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Power is ON
	UNLIT	Power is OFF
DS	SOLID GREEN	Downstream signal channel is locked
	FLASHING GREEN	Downstream scanning is in progress - Software update (over-the-air) is in progress
	UNLIT	No Downstream channel is locked
US	SOLID GREEN	Upstream signal channel is locked
	FLASHING GREEN	Upstream scanning is in progress - Software update (over-the-air) is in progress
	UNLIT	No Upstream channel is locked
ONLINE	SOLID GREEN	Modem is ONLINE
	FLASHING GREEN	Modem is OFFLINE
LAN	SOLID GREEN	Network devices is connecte to the LAN ports
	FLASHING GREEN	Data is being transmitted through the LAN ports
	UNLIT	No device is connected to the LAN ports
