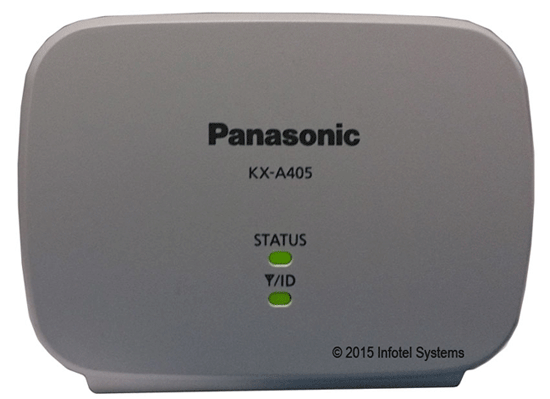

Panasonic KX-A405
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Green (Solid) | Within base unit range. The unit is ready for use |
Green (Flashing) | 1 handset is communicating with the base unit through this unit | Green (Quick Flashing) | 2 handsets are communicating with the base unit through this unit | Red (Solid) | Out of basre unit range | Red (Flashing) | The unit is not registered to the base unit | Unlit | The power is off. (AC adaptor is not connected properly) | | W INDICATOR / ID INDICATOR | Green (Solid) | Signal strength of the base unit is strong |
Green (Flashing) | The number of time the indicator flashes indicates the current ID of registered DECT repeaters | Green (Flashing) | When it flashes green once, it indicates that the ID is currently set to 1 | Green (Flashing) | The base unit is in DECT repeater range | Amber (Solid) | Signal strength of the base unit is weak | Red (Solid) | Out of base unit range | Red (Solid) | The unit has assigned the ID to the DECT repeater | Red (Flashing) | The number of times the indicator flashes indicates the ID that will be registered to the unit | Red (Flashing) | When it flashes red once, it indicates that the ID will be set to 1 | Unlit | The unit is not being used or the power is off |
