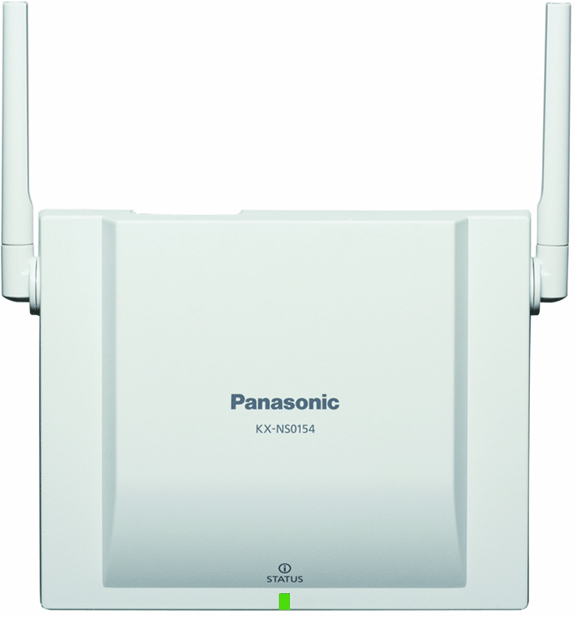

Panasonic KX-NS0154
Normal Status Lights

Light	STATUS	Description & Suggested Action
STATUS	Green (Solid)	Stand-by (no active calls)
	Green (Slow Flash)	Talking (active calls, channels available)
	Green (Fast Flash)	All channels busy
	Blue (Solid)	Stand-by (no ative calls)
	Blue (Slow Flash)	Talking (active calls, channels available)
	Blue (Fast Flash)	All channels busy
	Amber (Solid)	Stand-by (unstable air/LAN synchronization [no active calls])
	Amber (Slow Flash)	Talking (unstable air/LAN synchronization [active calls])
	Amber (Fast Flash)	All channels busy (unstable air/LAN synchronization)
	Red (Solid)	Fault
	Red (Slow Flash)	Out of service or starting up (from data link establishment to air/LAN synchroniztion)
	Red (Fast Flash)	Starting up (communication with PBX not established)
	Red & Green (Alternate Flashing)	Site survey master mode
	Unlit	Power off or updating Firmware
Notes: Slow Flash = 60 times per minute Fast Flash = 120 times per minute GREEN = (4 Channels - without Activation Key) BLUE = (8 Channels - without Activation Key)
