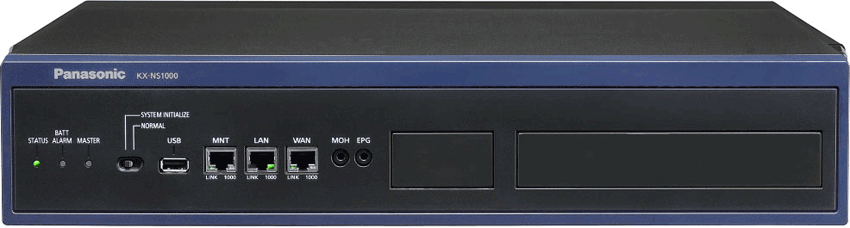

Panasonic KX-NS1000
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | GREEN SOLID | Power on and running |
| GREEN FLASHING | Starting up |
| UNLIT | Power off |
| AMBER SOLID | Ready to shutdown |
| AMBER FLASHING | Shutting down |
| RED SOLID | Power was cut without performing the shutdown procedure |
| RED SOLID | No IP address(es) assighed for the DSP card(s) byt the DHCP server |
| RED SOLID | Alarm for an optional service card |
| RED FLASHING (240/Minute) | Initialize failed |
| RED FLASHING (60/Minute) | WAN connection session malfunction (router malfunction) |
| BATT ALARM | RED SOLID | Alarm |
| UNLIT | Normal |
| MASTER | GREEN SOLID | Master unit is ON |
| GREEN FLASHING | Secondary unit is running as backup Master unit |
| AMBER FLASHING | Factory default on Master unit |
| AMBER SOLID | Secondary unit is on |
| AMBER FLASHING | Secondary unit Factory default/starting up |
| RED SOLID | Master unit is on: Recovered (waiting to be switched with Backup Master unit) |
| RED FLASHING | Secondary unit is Isolated from Master unit |
| MNT LINK | GREEN SOLID | Linked normally |
| GREEN FLASHING | In communication |
| UNLIT | Offline |
| MNT 1000 | GREEN SOLID | 1000 Mbps |
| YELLOW SOLID | 100 Mbps |
| UNLIT | 10 Mbps |
| LAN LINK | GREEN SOLID | Linked normally |
| GREEN FLASHING | In communication |
| UNLIT | Offline |
| LAN 1000 | GREEN SOLID | 1000 Mbps |
| YELLOW SOLID | 100 Mbps |
| UNLIT | 10 Mbps |
| WAN LINK | GREEN SOLID | Linked normally |
| GREEN FLASHING | In communication |
| UNLIT | Offline |
| WAN 1000 | GREEN SOLID | 1000 Mbps |
| YELLOW SOLID | 100 Mbps |
| UNLIT | 10 Mbps |
