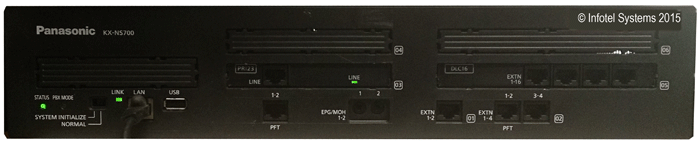

Panasonic KX-NS700
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Unlit | No power |
Green (Solid) | Power on and running | Green (Flashing) | Flashing (60 times per minute): Starting up/Logging in | Green (Flashing) | Flashing (120 times per minute): PFMPR is updating | Amber (Solid) | Ready to shut down | Amber (Flashing) | Flashing (60 times per minute): Shutting down | Red (Solid) | Alarm - The cause may be one of the following: | Red (Solid) | Power was cut without performing the shut down procedure | Red (Solid) | No IP address(es) assigned for the DSP card(s) by the DHCP server. | Red (Solid) | Alarm for an optional service card | Red (Flashing) | Flashing (240 times per minute): Initialize failed | | PBX MODE | Unlit | Not used |
| 10BASE-T/100BASE-TX LAN/LINK | Unlit | Off-line |
Green (Solid) | Linked normally | Green (Flashing) | In communication | | PRI23 LINE | Unlit | All Ports OUS or Fault |
Green (Solid) | INS (In Service) | Green (Flashing) | Flashing (60 times per minute): Master Clock (On) |
