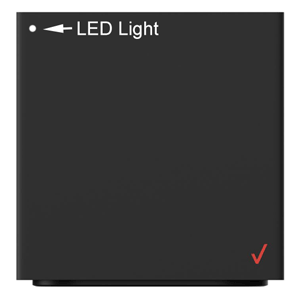

Verizon LTE Internet Gateway FSN021VA
Normal Status Lights

Light	STATUS	Description & Suggested Action
Boot Up	Unlit	System Off
	Soft Flash White	System Booting
	Fast Flash White	Firmware Update (FOTA)
Cell Signal	Solid White	Passing Signal
	Solid Red	No Signal, Cold SIM
	Hard Flash Red	No SIM Card
Regular Usage	50% Bright White	Setup Complete
	Solid Green	Wi-Fi disabled by User
Pairing	Hard Flash Blue	WPS Pairing
Other	Fast Flash Lime	Factory Reset
	Soft Flash Red	FW Error
test

Light	STATUS	Description & Suggested Action
LAN 1 - 4 Left LED	Unlit	Ethernet > 100M* Link
	Flashing White	Ethernet > 100M* Activity
LAN 1 - 4 Right LED	Solid Yellow	Ethernet < 100M* Link
	Flashing Yellow	Ethernet < 100M* Activity
LAN 1 - 4	Unlit	No Ethernet connection
