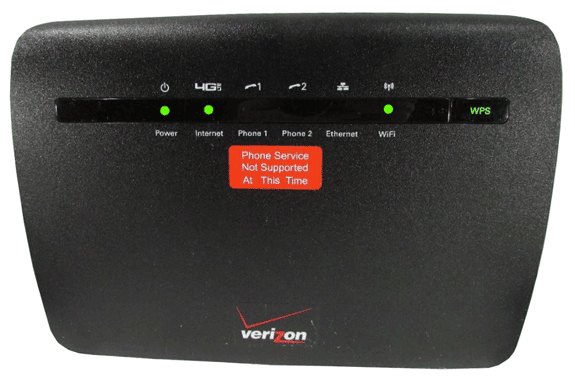

Verizon LTE TG790
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	Solid Green	Powe is on and Functioning Normally
	Flashing Green	Starting up
	Flashing Amber	Upgrade ongoing. Do not remove any cables or switch off the HBR when upgrading
	Solid Red	Error during Startup. Call Customer Care at 800-922-0204
	Unlit	HBR is powered off
INTERNET	Solid Green	Connected to MoCA network
	Flashing Green	Connected to MoCA network, activity
	Solid Amber	Connected to MoCA network but internal registration failed
	Flashing Amber	Connected to MoCA network, activity but internal registration failed
	Solid Red	No link to the MoCA network
	Flashing Red	Connected to the MoCA network, HBA could not be found
	Unlit	HBR is powered off or starting up
PHONE	Solid Green	Connected to Verizon Phone network
	Flashing Green	Call ongoing or connecting to the Verizon Phone network
	Flashing Amber	Voicemail message available
	Solid Red	Failed to connect to the Verizon Phone network
	Unlit	HBR is powered off or Telephony is not enabled
ETHERNET	Solid Green	One or more of the devices connected to the Ethernet port, no data activity
	Flashing Green	One or more of the devices connected to the Ethernet port, data activity
	Solid Red	No devices connected to the Ethernet port
	Unlit	HBR is powered off or starting up or All devices connected to the Ethernet ports are powered off
Wi-Fi	Solid Green	Wireless enabled, no activity
	Flashing Green	wireless enabled, data activity
	Unlit	HBR is powered off or starting up or Wireless is disabled
WPS	Solid Green	WPS successful
	Solid Amber	WPS button pressed
	Flashing Amber	WPS session ongoing. The session will stop in either of the following cases: After a successful connection or After 2 minutes
	Constant Flashing Red	Connection failed or other error, try again. If the problem persists, configure your wireless client manually
	Flashing Pause Pattern Red	Another WPS session is already ongoing. Wait for 2 minutes and then try again. If the problem persists, configure your wireless client manually
	Unlit	WPS not initiated or the HBR is powered off or starting up
