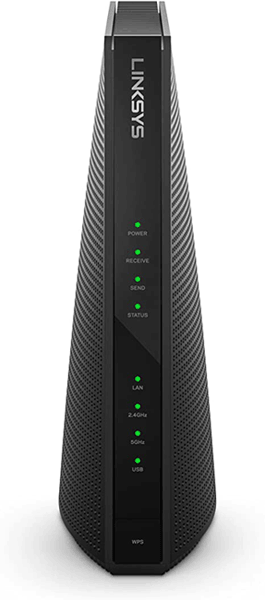

Comcast Linksys CG7500
Normal Status Lights

Light
STATUS
Description & Suggested Action
POWERSOLID GREENPowered ON
UNLITDoes not have Power
RECEIVEFLASHING GREENLight flashes green while the Modem Router is searching for a connection over the Cable Network
SOLID GREENModem Router is receiving data from the Cable Network
SOLID BLUEMulti-channel bonding
UNLITNo data is being received
SENDFLASHING GREENModem Router is searching for a connection over the Cable Network
SOLID GREENModem Router is sending data to the Cable Network
SOLID BLUEMulti-channel bonding
UNLITNo data is being sent
STATUSSOLID GREENInternet connection established
FLASHING GREENModem Router is establishing an Internet connection
UNLITNo Internet connection
ETHERNETSOLID GREENModem Router is connected to a device through the LAN port
UNLITNo device connected to LAN port
2.4 GHz Wi-FiSOLID GREENBroadcasting 2.4 GHz signal
FLASHING GREENActively sending or receiving data over the Network
UNLITNo 2.5 GHz connection
5 GHz Wi-FiSOLID GREENBroadcasting 5 GHz signal
FLASHING GREENActively sending or receiving data over the Network
UNLITNo 5 GHz connection
USBSOLID GREENModem Router is connected to a device via the USB port
UNLITNo device is connected to USB port
WPSSOLID GREENWi-Fi protected setup connection is successfully established
FLASHING GREENSlowly flashes when setting up a connection. Flashes rapidly if an error occurs
UNLITWPS is idle
