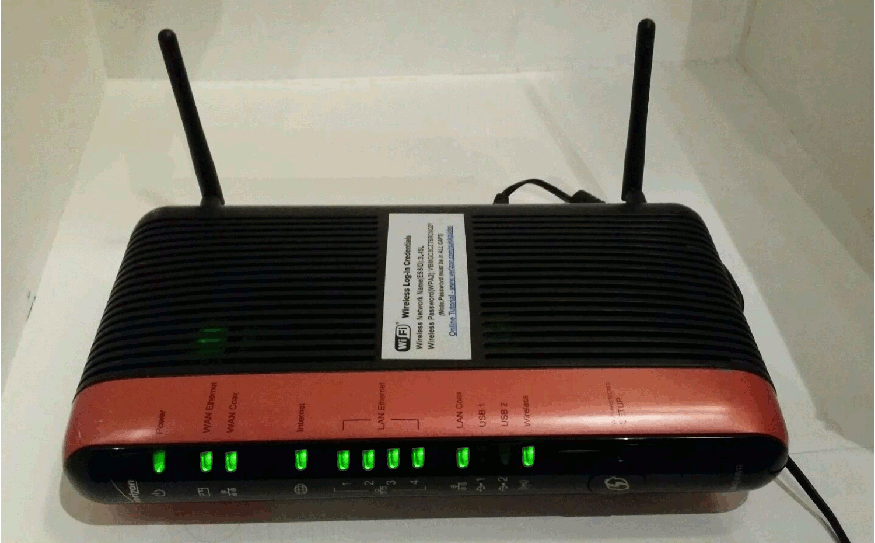

Actiontec M1424WR REV I
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | FiOS Router is receiving power and fully operational. |
Green (Flashing) | FiOS Router is initializing. | Red | If the Power light is not illuminated when the Power cord is plugged in and the Power switch is turned on, or if the Power light glows red for more than 3 minutes, the FIOS Router has suffered a critical error and technical support should be contacted. | | WAN ETHERNET | Green (Solid) | FIOS Router is connected to the Internet via Ethernet. |
Green (Flashing) | If flashing, data traffic is passing across the port. | | WAN COAX | Green (Solid or (Flashing) | The WAN Coax LED glows steadily or flashes when the Fios Router is connected to the Internet via coaxial cable. |
| INTERNET | Green (Solid) | Fios Router is connected to the ISP (Internet Service Provider) |
Amber (Solid) | If Internet glows amber, there is a physical connection to the ONT (Optical Network Terminator), but authentication has not taken place (i.e no IP address present). | | LAN ETHERNET 1-4 | Green (Solid) | FIOS Router is connected to a local network via one or more of it's Ethernet ports. |
Green (Flashing) | If flashing, data traffic is passing across the port(s). | | LAN COAX | Green (Solid or Flashing) | The LAN Coax LED glows steadily or flashes when the FIOS Router is connected to a local network via it's Coax port. |
| USB 1 -2 | Green | The USB LED's illuminate when the FIOS Router is connected to a device via one of it's USB ports. These ports are currently inoperational; they will be activated in a future firmware update. |
| WIRELESS | Green (Solid or Flashing) | LED illuminates when the FIOS Router's wireless access point is turned on. If flashing, data traffic is passing across the wireless connection. |
