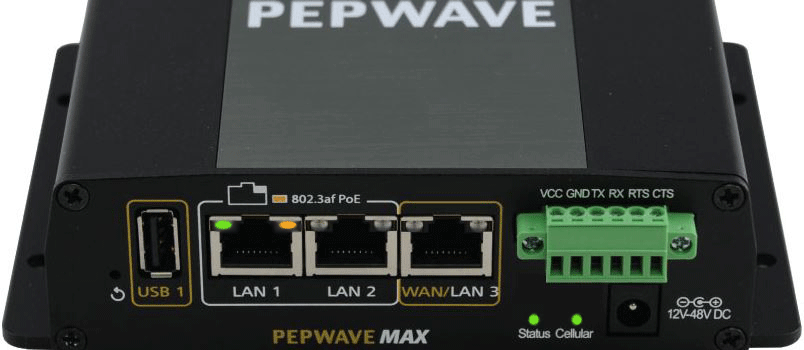

PepWave MAX BR1 ENT LTE
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Unlit | System initializing |
Red | Booting up or busy | Green (Solid) | Ready | | WI-FI | Unlit | Disabled Intermittent |
Green (Flashing Slowly) | Connecting to wireless network(s) | Green (Flashing) | Connected to wireless network(s) with traffic | Green (Solid) | Connected to wireless network(s) without traffic | | CELLULAR | Unlit | Disabled or no SIM card inserted |
Green (Solid) | Connecting or connected to network(s) | Green (Flashing) | Attempting to connect to a cellular network | | LAN 1 - 2 & ETHERNET WAN PORTS | Orange (Flashing) | Data is transferrring |
Orange Unlit | No data or port not connected. | Green (Solid) | 10 / 100 /1000 Mbps (Port connected at) | Green Unlit | No data transferred |
