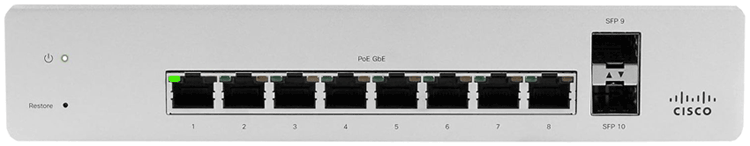

Cisco Routers MS130-8
Normal Status Lights
If you need to support for any Cisco device please see: Richweb.
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | UNLIT | Switch does not have Power |
FLASHING WHITE | Firmware update in process | SOLID WHITE | Switch is fully operational and connected to the Meraki Cloud | SOLID ORANGE | Switch is unable to connect to the Meraki Cloud | | SWITCH PORTS | UNLIT | Port is operating less than full speed. Example: 10/100M on 1GE Port, 100M/1GE on 2.5GE Ports, 1G on SFP+ Ports |
SOLID GREEN | Port is operating at full speed. 1GE on 1GE Ports, 2.5GE on 2.5GE Ports, 10GE on SFP+ | | STATUS | FLASHING WHITE | Device is in contact with the Dashboard Cloud Server and is performing a firmware update. (This can take 2--45 minutes or more to complete) |
FLASHING ORANGE | Device is not able to successfully communicate with the Dashboard Cloud Servers or there may be an issue with the devices hardware. (Check Local Status Page of the device to confrim the status and reach out to Meraki Support for further troubleshooting.) |
