Cisco MX68
Normal Status Lights
If you need to support for any Cisco device please see: Richweb.
Light
|
STATUS
|
Description & Suggested Action
|

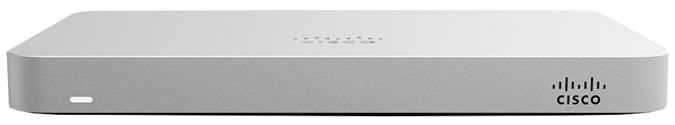

| FRONT LED | Solid Orange | Power is on but the appliance is not connected to the Meraki Dashboard |
Rainbow Colors | Attempting to connect to the Meraki Dashboard | Flashing White | Firmware upgrade in progress | Solid White | Fully operational | Solid Purple | Fully operational/connected, uplink actively using integrated cellular failover |
If you need to support for any Cisco device please see: Richweb.
Light
|
STATUS
|
Description & Suggested Action
|

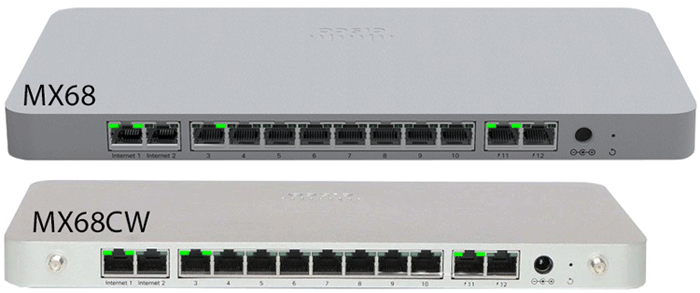

| WAN/INTERNET | | These 2 Ports provide connectivity to the WAN |
| LAN | Solid Green | Bidirectional connectivity |
Flashing Green | Indicates traffic | | PoE + PORTS | Solid Green | Bidirectional connectivity |
Flashing Green | Indicates traffic | | POWER | | Designed for use only with the unit's power supply |
| RESET | | Press for 1 second to delete a downloaded config and reboot |
| Press and hold for more than 10 seconds to fully factory reset |
