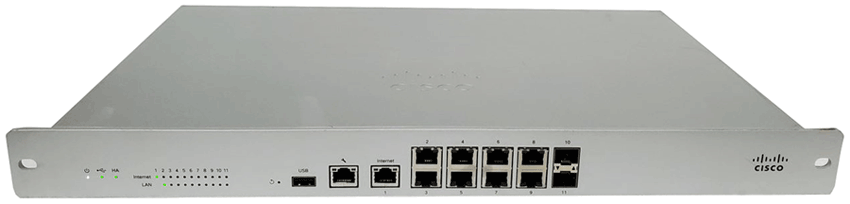

Cisco Routers Meraki MX100
Normal Status Lights

If you need to support for any Cisco device please see: Richweb.

Light	STATUS	Description & Suggested Action
POWER	SOLID ORANGE	Power is ON
	RAINBOW COLORS	Unit is attempting to contact the Cloud
	FLASHING WHITE	Operation in progress
	SOLID WHITE	Fully operational
	UNLIT	No Power
USB	SOLID ORANGE	Initial Link
	FLASHING ORANGE	Internet connectivity not complete
	SOLID WHITE	USB detected
	UNLIT	During boot or no USB Link
HA STATUS	SOLID ORANGE	Initial Link
	FLASHING ORANGE	High availability not complete
	SOLID GREEN	High availability available
	UNLIT	No high availability
INTERNET	SOLID GREEN	Port is configured as an Internet uplink port
LAN	SOLID GREEN	port is configured as a LAN port
SFP	SOLID GREEN	SFP connection
	UNLIT	No SFP connection
