Comcast Motorola MB8611

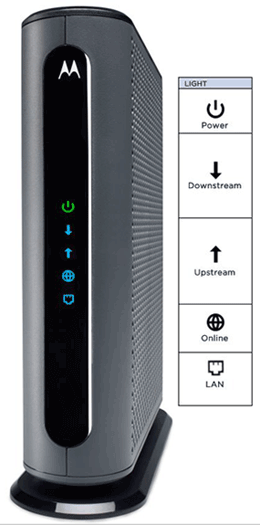

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Powered ON
	UNLIT	No Power
DOWNSTREAM	FLASHING GREEN	Scanning for DS channel
	SOLID GREEN	Connected on 1 Downstream channel
	FLASHING BLUE	Negotiating bonded channel(s)
	SOLID BLUE	Bonded with 2 or more channels
UPSTREAM	FLASHING GREEN	Ranging in progress
	SOLID GREEN	Connected on 1 channel
	FLASHING BLUE	Negotiating bonded channel(s)
	SOLID BLUE	Bonded with 2 or more channels
	UNLIT	Upstream not connected
ONLINE	FLASHING GREEN	Trying to go online
	SOLID GREEN	Online with DOCSIS 3.0
	SOLID BLUE	Online with DOCSIS 3.1
	UNLIT	Offline
LAN	FLASHING GREEN	Data is flowing
	SOLID WHITE	Ethernet link at 100BT
	SOLID GREEN	Ethernet link at 1GE
	SOLID BLUE	Ethernet link at 2.5GE
	UNLIT	No connection
