ADTRAN NetVanta 1531_1531P

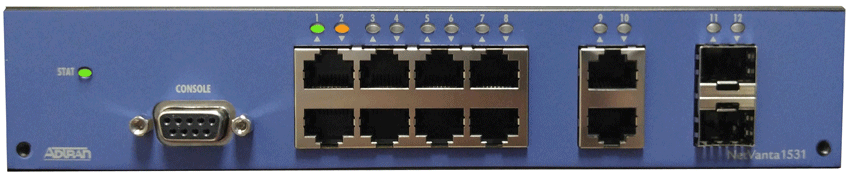

Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STAT | Unlit | Unit is not receiving power |
Green (Flashing) | On power up, the STAT LED flashes rapidly for 5 seconds, during which time the user ay escape to boot mode from the CONSOLE port | Green (Solid) | Power is on and self-test passed | Red (Solid) | Power is on, but the self-test failed or the application code could not be booted | | PORT LED's (1-12) | Unlit | The Port is not connected |
Green (Solid) | The Link is up and the Port is enabled | Amber (Flashing) | There is activity on the Port |

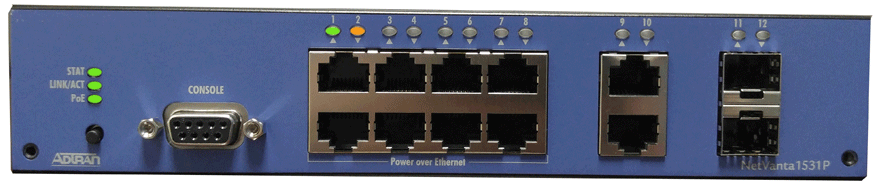

Light
|
STATUS
|
Description & Suggested Action
|
| STAT | Unlit | Unit is not receiving power |
Green (Flashing) | On power up, the STAT LED flashes rapidly for 5 seconds, during which time the user ay escape to boot mode from the CONSOLE port | Green (Solid) | Power is on and self-test passed | Red (Solid) | Power is on, but the self-test failed or the application code could not be booted | | LINK/ACT | Unlit | Link status/activity is not being displayed |
Green (Solid) | Link status/activity is being displayed | | PoE | Unlit | PoE status is not being displayed |
Green (Solid) | PoE status is being displayed | | PORT LED's (1-12) LINK/ACTIVITY MODE | Unlit | The Port is not connected |
Green (Solid) | The Link is up and the Port is enabled | Amber (Flashing) | There is activity on the Port | | PORT LED's in PoE MODE | Unlit | The Port is not delivering power |
Green (Solid) | The Port is delivering power | Red (Solid) | The Port has detected a PoE fault |
