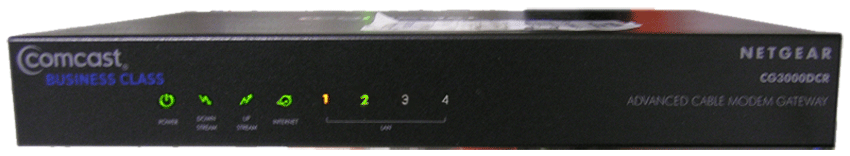

Comcast Netgear CG3000DCR
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green | Power is supplied to the Gateway. |
Unlit | Power is not supplied to the Gateway. | | DOWN STREAM | Green (Blinking) | Scanning for DS channel. |
Green (Solid) | Synchronized on 1 channel only. A 50/10 account shows solid green but shows 4 channels connected on the modem's http admin screen. | | UP STREAM | Green (Blinking) | Ranging is in progress. |
Green (Solid) | Ranging is complete on 1 channel only. A 50/10 account shows solid green. | Unlit | Scanning for DS channel. | | INTERNET | Green (Blinking) | Able interface is acquiring IP, ToD, CM configuration. |
Green (Solid) | Gateway is operational. (Takes 30 seconds to turn solid after cable connection.) | Unlit | Gateway is offline. (Takes 10-30 seconds to go OFF after cable is disconnected.) | | LAN 1 - LAN 4 10-100 MBPS | Amber (Blinking) | Data is transmitting. |
Amber (Solid) | Connected at 10 or 100 Mbps. | Unlit | No Ethernet link detected. | | LAN 1 - LAN 4 1 GMBPS | Green (Blinking) | Data is transmitting. |
Green (Solid) | Connected at 1 GMbps. | Unlit | No Ethernet link detected. |
