Alcatel-Lucent OmniAccess Stellar AP1201H

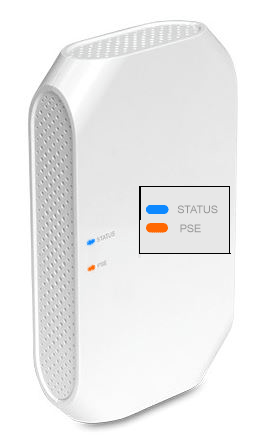

Normal Status Lights

Light	STATUS	Description & Suggested Action
STATUS	RED SOLID	Power on
	RED SOLID	Bootloader-OS loading - System Startup
	RED FLASHING	Network abnormal or connect management platfrom abnormal
	RED FLASHING	3 LEDs alternate flashing; used for locating an AP
	BLUE SOLID	Network normal, dual bands working, both 2.4Ghz & 5Ghz are working
	BLUE FLASHING	Red and Blue LED alternate flashing ; OS is upgrading
	BLUE FLASHING	3 LEDs alternate flashing; used for locating an AP
	GREEN SOLID	Network normal, single bands working, both 2.4Ghz & 5Ghz are working
	GREEN FLASHING	Network normal, without SSID created
	GREEN FLASHING	3 LEDs alternate flashing; used for locating an AP
PSE	ORANGE SOLID	PSE enabled, PD device is online
	ORANGE FLASHING	PSE enabled, PD device is offline
	UNLIT	PSE disabled
