Netgear PR60X

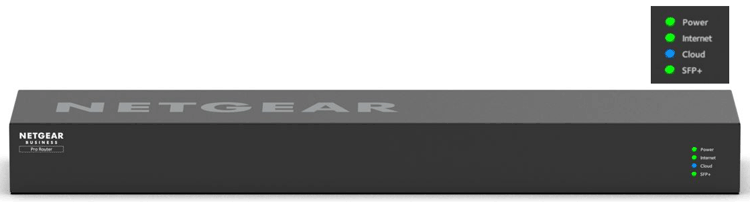

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID AMBER	The PR60X is starting (Solid Amber lasts for about 1 minute)
	FLASHING AMBER	The firmware is being loaded while the PR60X is starting or the Firmware is being updated
	SOLID GREEN	The PR60X is ready
	UNLIT	No Power
INTERNET	FLASHING AMBER	Internet connection is in process of being set up
	SOLID GREEN	Internet connection has been established
	SOLID AMBER	No Internet connection
	UNLIT	No Link established on WAN1 Port
CLOUD	SOLID BLUE	The PR60X functions in Insight mode and is connected to the Insight Cloud
	UNLIT	PR60X functions in Standalone mode or if deplyed in Insight mode it is not connected to the Insight Cloud
SFP+	SOLID GREEN	Link is up
	UNLIT	No Link established

For more information or to have your device listed please contact Infotel Systems
