PepWave Peplink B-One 5G

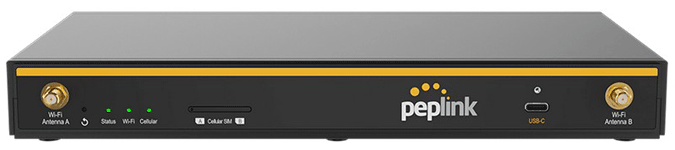

Normal Status Lights

Light	STATUS	Description & Suggested Action
STATUS	Solid Red	Booting up or busy
	Flashing Red	Bootup error
	Solid Green	Ready/Normal operation
CELLULAR	Unlit	No SIM card
	Flashing Green	Connecting to network
	Solid Green	Connected to network
WI-FI	Unlit	Wi-Fi AP or Wi-Fi WAN disabled
	Solid Green	Wi-Fi AP or Wi-Fi WAN enabled

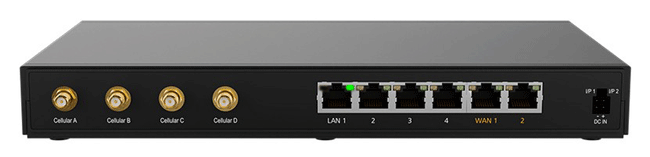

Light	STATUS	Description & Suggested Action
LEFT LAN	Solid Orange	Port is connected but no data is being transferred
	Flashing Orange	Data is being transferred
	Unlit	Port is disconnected
RIGHT LAN	Solid Green	Connected with 100/1000Mbps
	Unlit	Connected with 10Mbps
