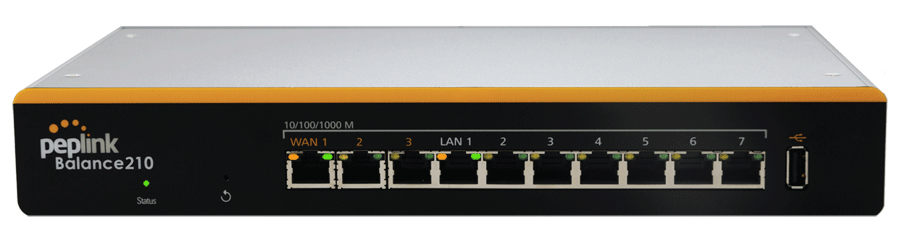

PepWave Peplink Balance 210
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Green (Solid) | Power is on and Status is ready |
Unlit | Upgrading firmware | Red (Solid) | Booting up or busy | Red (Flashing) | Boot up error | | WAN (Ports 1 - 3) | Green (Solid) | On - 10/100/1000 Mbps |
Orange (Flashing) | Data is transferring | Orange (Unlit) | No data is being transferred or port is not connected | | LAN (Ports 1 - 7) | Green (Solid) | On - 10/100/1000 Mbps |
Orange (Flashing) | Data is transferring | Orange (Unlit) | No data is being transferred or port is not connected |
