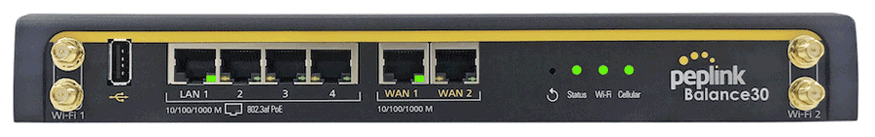

PepWave Peplink Balance 30 Pro
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| LAN 1 - 4 | GREEN SOLID | POE enabled |
| UNLIT | POE disabled |
| AMBER FLASHING | 10/100/1000 Mbps activity |
| UNLIT | No data is being transferred or port is not connected |
| WAN 1 - 2 | GREEN SOLID | 1000 Mbps |
| UNLIT | 10/100 Mbps or port is not connected |
| AMBER FLASHING | Data is transferring |
| UNLIT | No data is being transferred or port is not connected |
| STATUS | GREEN SOLID | Ready |
| SOLID RED | Booting up or busy |
| RED FLASHING | Boot up error |
| UNLIT | Upgrading Firmware |
| WI-FI | GREEN SOLID | Enabled |
| UNLIT | Disabled |
| CELLULAR | GREEN SOLID | Connected to Wireless Network |
| GREEN SLOW FLASH | Connecting to Wireless Network |
| UNLIT | Disabled |
