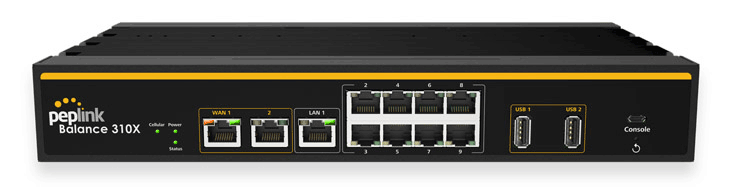

PepWave Peplink Balance 310X
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	GREEN SOLID	Power on
	UNLIT	Power off
STATUS	GREEN SOLID	Ready
	RED SOLID	Booting up or busy
	RED FLASHING	Boot up error
	UNLIT	Upgrading Firmware
CELLULAR	GREEN SOLID	Connected to wireless network
	GREEN SLOW FLASH	Connecting to wireless network
	UNLIT	Disabled or no SIM card inserted
WAN	GREEN SOLID	Connected at 1000 Mbps
	UNLIT	10/100 Mbps or port is not connected
	AMBER FLASHING	Data is transferring
	UNLIT	No data is being transferred or port is not connected
LAN	GREEN SOLID	Connected at 1000 Mbps
	UNLIT	10/100 Mbps or port is not connected
	AMBER FLASHING	10/100/1000 Mbps activity
	UNLIT	No data is being transferred or port is not connected

For more information or to have your device listed please contact Infotel Systems
